TECNOMECCANICA

Grapple mod. Comby 3

Linea Forest Winner

The grapple is provided with standard "teeth" accessories

Made from Domex 710 steel and equipped with lock valve

The trunk grapple are used to transport, load, and unload tree trunks that have been cleaned of branches and are ready for transport: They can be assembled on forestry cranes of all models and sizes.
An important innovation is the wood chip grapple, that can be assembled on a crane and split trunks measuring up to 80 cm in diameter to prepare them for the successive production processes.
Finally, the Comby 3 grapple can also be used for: brushwood or manure, while if the yellow parts are disassembled it becomes a normal wood grapple.

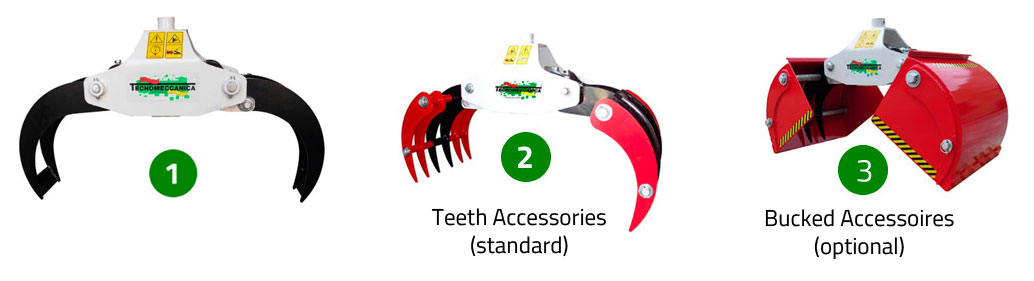

This wood grapple can be used in three ways:


1. Use of only the grapple without teeth and bucket for loading tree trunks;
2. Use of the red teeth for grappling branches or loose materials;
3. Use of 2 buckets for loading wood chips, sand, earth and all loose materials.

All this can be done by simply assembling 4 pivots in less than 2 minutes.

    A MAXIMUM pressure valve (available on request) is fitted for pressure above 250 BAR

TECHNICAL DATA

TECHNICAL DATA FOR REFERENCE PURPOSES

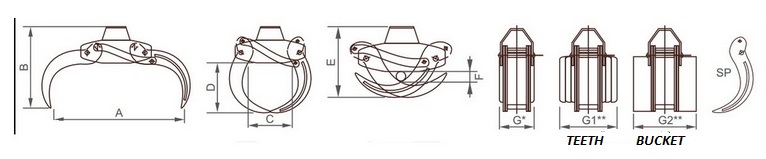

MODEL STANDARD Weight kg Lift Kg MAX bar A mm B mm C mm D mm E mm F mm G* mm

G1 TEETH

G2* BUCKET mm

SP mm AREA mq
THLS 30 COMBY 105 1200 200 1000 730 405 450 460 65 310 650 10 0,146
TP 120 COMBY 147 1500 200 1200 770 450 480 510 80 355 680 10 0,201
TP 135 COMBY 205 1900 200 1350 880 500 540 550 90 370 750 12 0,255
TP 155 COMBY 300 2500 200 1550 960 620 630 600 100 430 850 12 0,336
TP 175 COMBY 405 3000 200 1750 1100 680 710 670 130 490 1000 15 0,428



* Grapple only, without accessories
  ** With teeth - bucket accessories

MODEL professional Weight kg Lift Kg MAX BAR A mm B mm C mm D mm E mm F mm G* mm

G1 TEETH G2*BUCKET

mm

SP mm AREA mq
THLS 30 COMBY professional 122 1400 250 1000 730 405 450 460 65 310 650 10 0,146
TP 120 COMBY professional 205 1700 250 1200 770 450 480 510 80 355 680 10 0,201
TP 135 COMBY professional 250 2100 250 1350 880 500 540 550 90 370 750 12 0,255
TP 155 COMBY professional 320 2700 250 1550 960 620 630 600 100 430 850 12 0,336
TP 175 COMBY professional 445 3200 250 1750 1100 680 710 670 130 490 1000 15 0,428
