TECNOMECCANICA

ROTATORS Grab accessories

Linea Forest Winner


We produce a wide range of hydraulic rotators for wood grabs and mechanical rotators, in different sizes to meet all needs.
The trunk grabs are used to transport, load, and unload tree trunks that have been cleaned of branches and are ready for transport.

Rotating hooks

Rotating hooks
  • Rotating hooks, suitable for alla hydraulic rotators

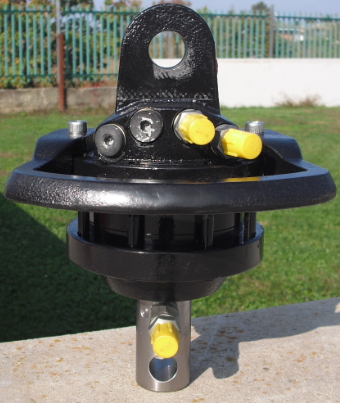

Mechanical rotators 360°



max 250 bar
Models Static load Dinamic load Weight Pressure Rotation Torque oil flow Schede tecniche
TR15-mechanical 1,2 Ton 600 Kg 10 Kg 250 Bar 360° cont. 500 Nm 10 lit/min scarica la scheda tecnica
TR35-mechanical 3,5 Ton 1750 Kg 17 Kg 250 Bar 360° cont. 900 Nm 20 lit/min scarica la scheda tecnica
TR50-mechanical 5 Ton 2500 Kg 25 Kg 250 Bar 360° cont. 1100 Nm 20 lit/min scarica la scheda tecnica
TR55-mechanical 5,5 Ton 2700 Kg 28 Kg 250 Bar 360°cont. 1300 Nm 20 lit/min scarica la scheda tecnica
TR85-mechanical 7 ton 3500 kg   250 Bar 360°cont 1900 Nm 25 lit/min scarica la scheda tecnica
TR128-mechanical 12 ton 6000 kg   250 Bar 360°cont 2700 Nm 30 lit/min scarica la scheda tecnica

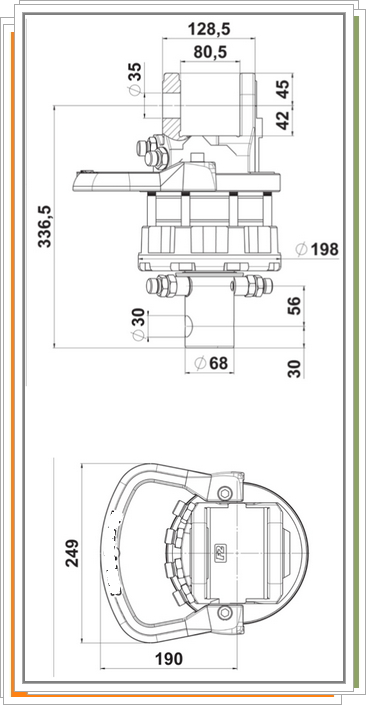

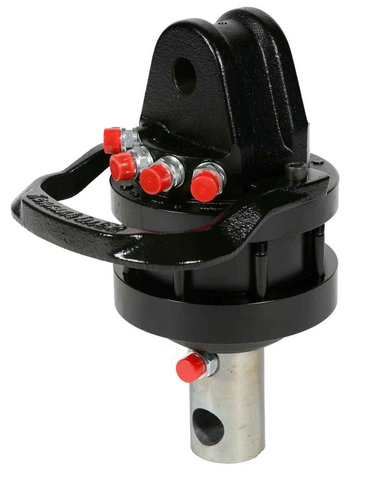

Hydraulic Rotators -Shaft Version-

rotori per pinze da legna

max 250 bar
Models Static load Dinamic load Weight Pressure Rotation Torque oil flow Schede tecniche

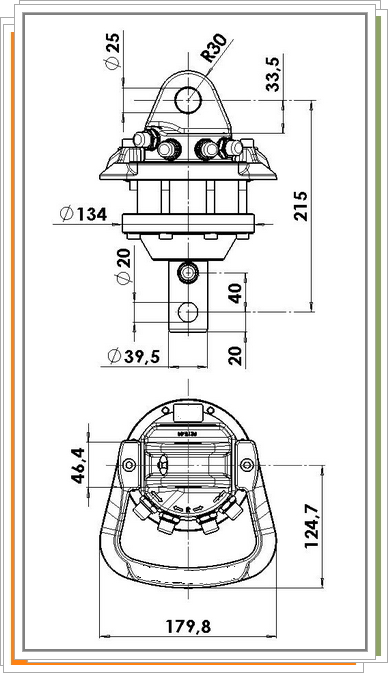

TR15 1,2 Ton 600 Kg 10 Kg 250 Bar 360° cont. 500 Nm 10 lit/min scarica la scheda tecnica

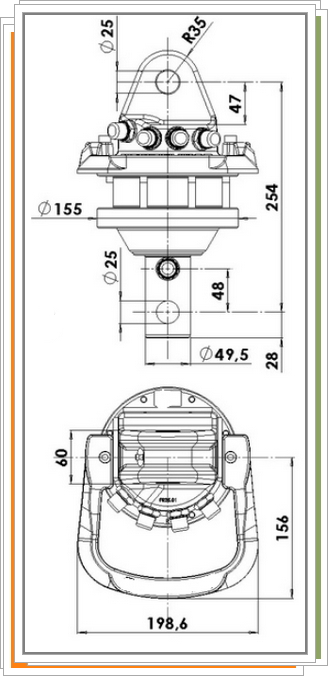

TR35 3,5 Ton 1750 Kg 17 Kg 250 Bar 360° cont. 900 Nm 20 lit/min scarica la scheda tecnica

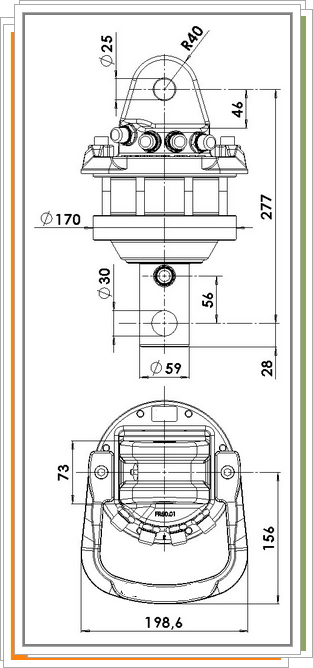

TR50 5 Ton 2500 Kg 25 Kg 250 Bar 360° cont. 1100 Nm 20 lit/min scarica la scheda tecnica

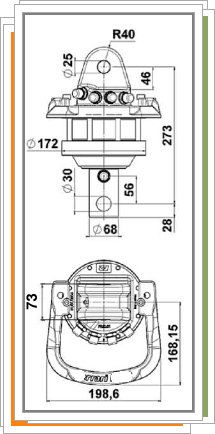

TR55 5,5 Ton 2700 Kg 28 Kg 250 Bar 360°cont. 1300 Nm 20 lit/min scarica la scheda tecnica

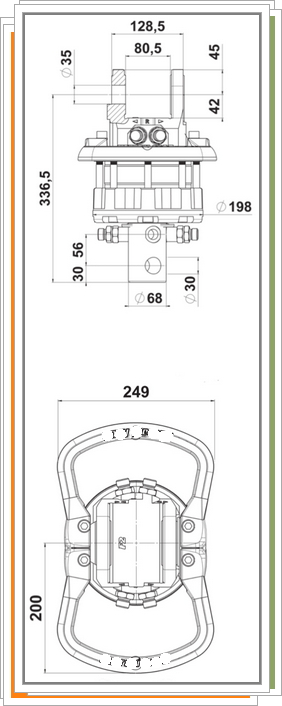

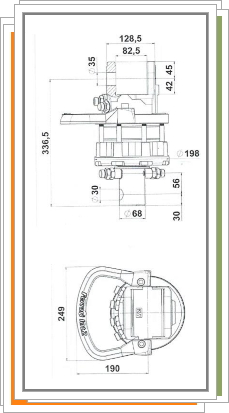

Hydraulic Rotators Shaft Version - mod.TR85 SX



rotori per pinze da legna

max 250 bar
Model Static load     Dinamic load Weight Pressure Rotation Torque oil flow Schede tecniche
TR85 SX 7 Ton 3500 Kg 36 Kg 250 Bar 360° cont. 1900 Nm 25 lit/min scarica la scheda tecnica



Hydraulic Rotators Shaft Version - mod.TR85 SX/2

rotori per pinze da legna

max 250 bar
Model Static load Dinamic load Weight Pressure Rotation Torque oil flow Schede tecniche
TR85 SX/2 7 Ton 3500 Kg 38 Kg 250 Bar 360° cont. 1900 Nm 25 lit/min scarica la scheda tecnica

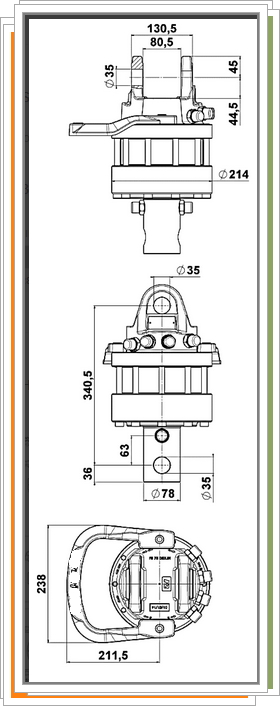

Hydraulic Rotators Shaft Version -mod. TR128 SX

rotori per pinze da legna

max 250 bar
Model Static load Dinamic load Weight     Pressure Rotation Torque Oil flow Schede tecniche
TR128 SX 12 Ton 6000 Kg 48 Kg 250 Bar 360° cont. 2700 Nm 30lit/min scarica la scheda tecnica

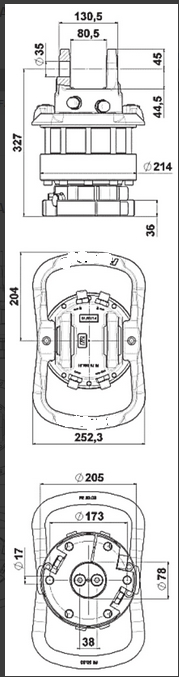

Hydraulic Rotators Shaft Version -mod. TR128 SX/2

rotori per pinze da legna

max 250 bar
Model Static load Dinamic load Weight Pressure Rotation Torque Oil flow Schede tecniche
TR128 SX/2 12 Ton 6000 Kg 51 Kg 250 Bar 360° cont. 2700 Nm 30lit/min scarica la scheda tecnica

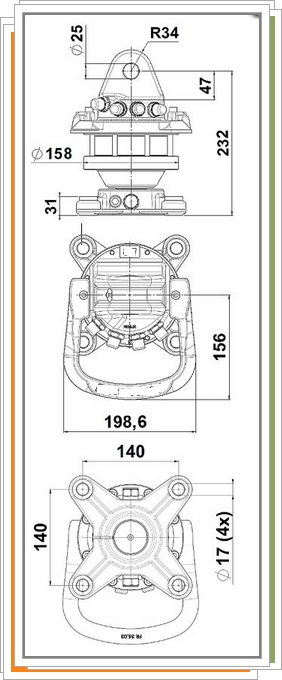

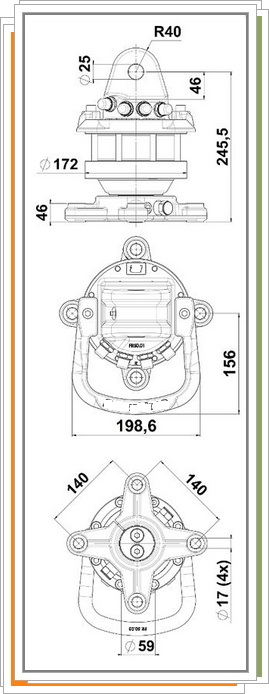

Hydraulic rotators flanged version


Model Static load Dinamic load Weight Pressure Rotation Torque Oil flow Schede tecniche
TR35F 3,5 Ton 1750 Kg 22 Kg 250 Bar 360° Cont. 900 Nm 20 lit/min scarica la scheda tecnica
TR50F 5, Ton 2500 Kg 28 Kg 250 Bar 360° Cont. 1100 Nm 20 lit/min scarica la scheda tecnica

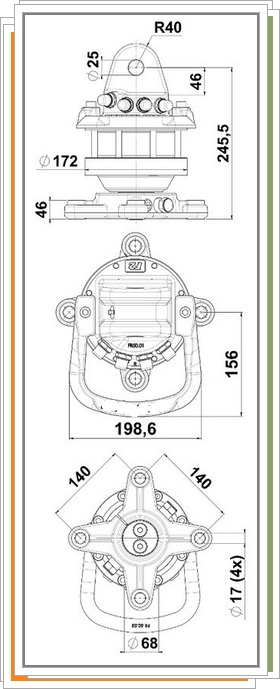

TR55F 5,5 Ton 2700 Kg 33 Kg 250 Bar 360° Cont 1300 Nm 20 lit/min scarica la scheda tecnica

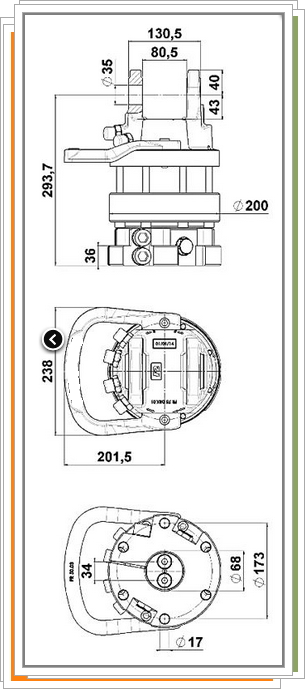

Hydraulic rotators flanged version- mod. TR85 SX-F

rotori per pinze da legna

max 250 bar
Model Static load Dinamic load Weight Pressure Rotation Torque Oil flow Schede tecniche
TR85 SX-F 7 Ton 3500 Kg 41 Kg 250 Bar 360° cont. 1900 Nm 25 lit/min scarica la scheda tecnica

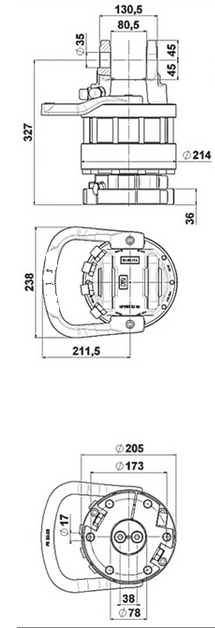

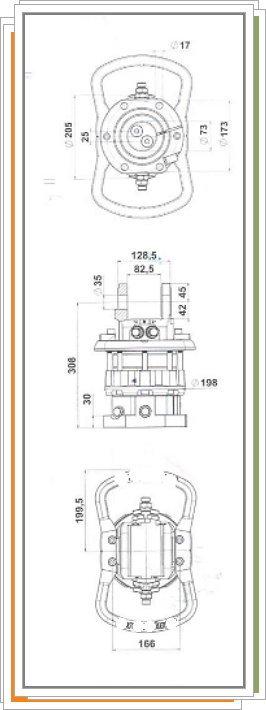

Hydraulic rotators flanged version - mod.TR85 SX-F/2

rotori per pinze da legna

max 250 bar
Model Static load Dinamic load Wright Pressure Rotation Torque Oil flow Schede tecniche
TR85 SX- F/2 7 Ton 3500 Kg 44 Kg 250 Bar 360° cont. 1900 Nm 25 lit/min scarica la scheda tecnica



Hydraulic rotators flanged version -mod. TR128 SX-F

rotori per pinze da legna

max 250 bar
Model Static load Dinamic load Weight Pressure Rotation Torque Oil flow Schede tecniche
TR128 SX-F 12 Ton 6000 Kg 56 Kg 250 Bar 360° cont. 2700 Nm 30 lit/min scarica la scheda tecnica



Hydraulic rotators flanged version -mod. TR128 SX-F/2

rotori per pinze da legna

max 250 bar
Model Static load Dinamic load Weight Pressure Rotation Torque Oil flow Schede tecniche
TR128 SX-F/2 12 Ton 6000 Kg 59 Kg 250 Bar 360° cont. 2700 Nm 30 lit/min scarica la scheda tecnica



Hydraulic rotators flanged version -mod. TR175DBX-F/2



max 250 bar
Model Static load Dinamic load Weight Pressure Rotation Torque Oil flow
TR175 DBX-F/2 doppio cuscinetto 17 Ton 8500 Kg 70 Kg 250 Bar 360° cont. 3400 Nm 40 lit/min

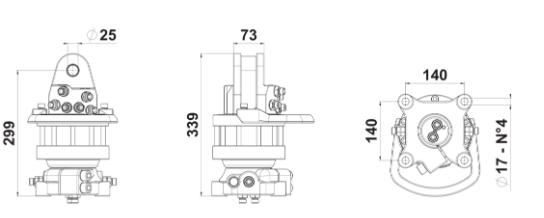

ROTATORS 6 hydraulic link-TR50 F S6X -6 ton

rotori per pinze da legna

max 250 bar
Model Stadic load dinamic load Weight Pressure rotation torque oil flow Schede tecniche
 TR 50F-S6X- 6 hydraulic link 5 Ton kg 2500 36 Kg 250 Bar 360° cont. Nm 1100 20 l/min. scarica la scheda tecnica

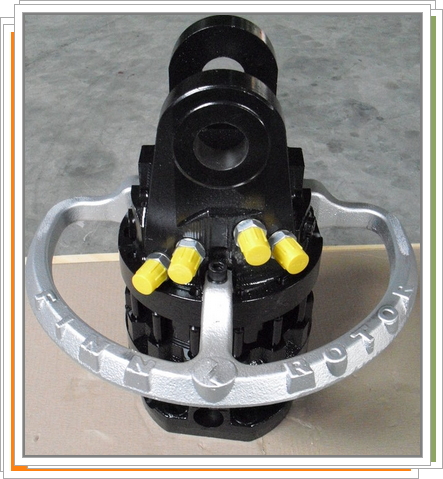

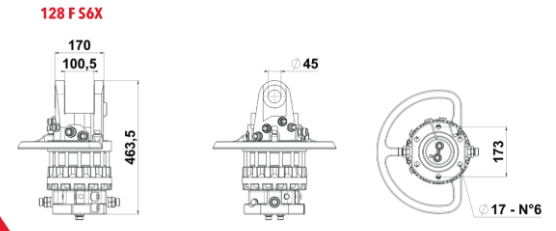

ROTATORS 6 hydraulic link -TR128 F S6X- 12 Ton

rotori per pinze da legna

max 250 bar
Model Static load Dinamic load Weight Pressure Torque Oil flow Schede tecniche
TR128 F S6X- - 6 hydraulic link 12 Ton 6000 kg 78 Kg 250 Bar Nm 2900 30 l/min. scarica la scheda tecnica



STEEL HYDRAULIC ROTATORS 360° WITH PIVOT (P) AND FLANGED (F) UNLIMITED

rotori per pinze da legna

max 350 bar
Model Static load Weight Torque Schede tecniche
R3G49- P 3 Ton 22,5 Kg 900 Nm scarica la scheda tecnica
R4G1-F 4 Ton 27 Kg 900 Nm scarica la scheda tecnica
R5G1-F 5 Ton 33 Kg 1100 Nm scarica la scheda tecnica
R5G59-P 5 Ton 28 Kg 1100 Nm scarica la scheda tecnica
R7B11-F 7 Ton 62 Kg 2600 Nm scarica la scheda tecnica
R7B21-F 7 Ton 68 Kg 2600 Nm scarica la scheda tecnica

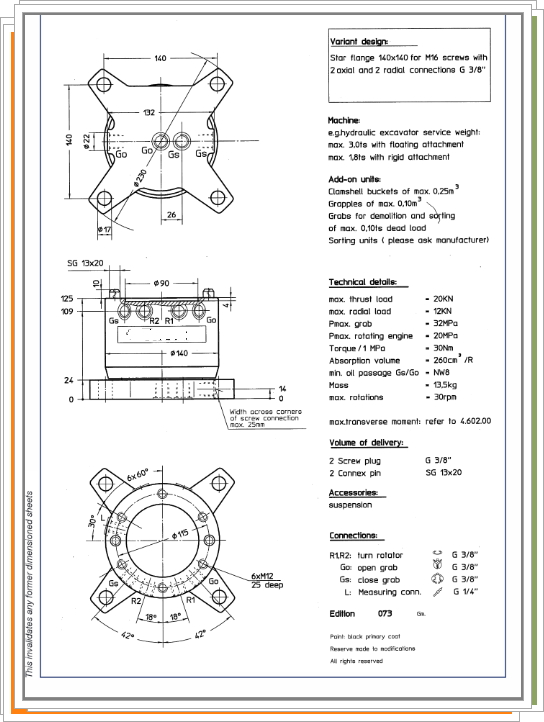

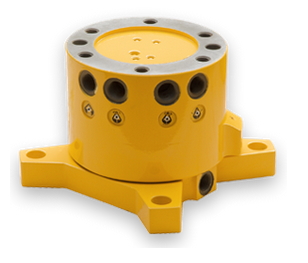

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL- mod.602/4 hydraulic link -2 Ton

rotori per pinze da legna Model Static load

Rigid mounting

Pendulum mounting

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
602/4 hydraulic link  2 Ton 1.8 ton 3 ton 13,5 Kg 320 MAX BAR 200 MAX BAR scarica la scheda tecnica

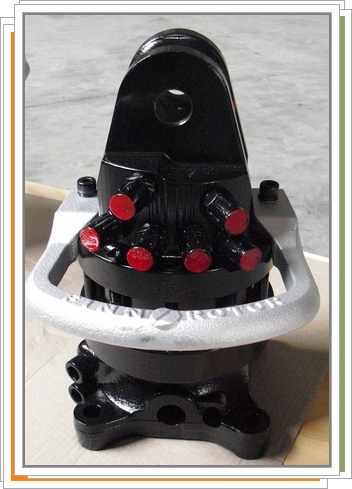

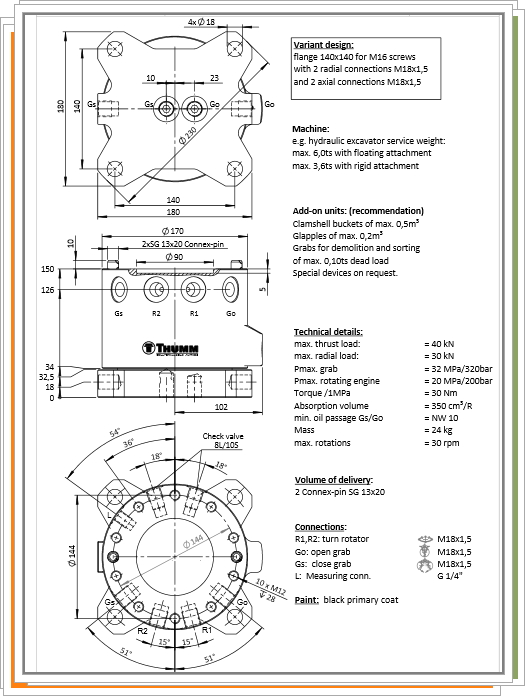

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL- mod.604/4 hydraulic link -4 Ton

Model Static load

rigid mounting

pendulum mounting

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
604/4  hydraulic link  4 Ton 3.6 ton 6 ton 24 Kg 320 MAX BAR 200 MAX BAR scarica la scheda tecnica

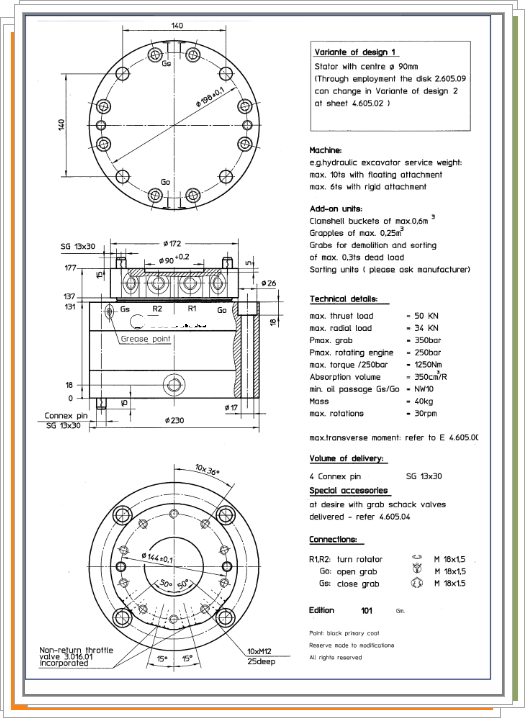

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod-605/4 hydraulic link -5 Ton

rotori per pinze da legna Model Static load

rigid mounting

pendulum mounting

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
605/4 hydraulic link  5 Ton 6 ton 10 ton 40 Kg 350 MAX BAR 250 MAX BAR scarica la scheda tecnica

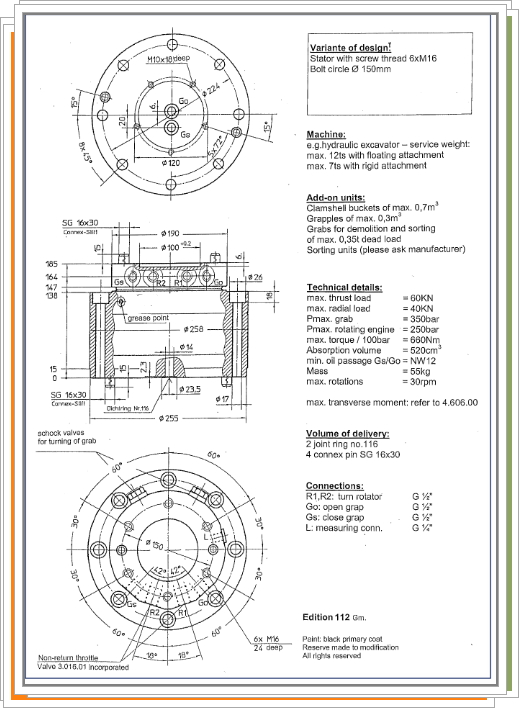

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod.606/4 hydraulic link -6 Ton

rotori per pinze da legna Model Static load

rigid mounting

pendulum mounting

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
606/4  hydraulic link  6 Ton 7 ton 12 ton 55 Kg 350 MAX BAR 250 MAX BAR scarica la scheda tecnica

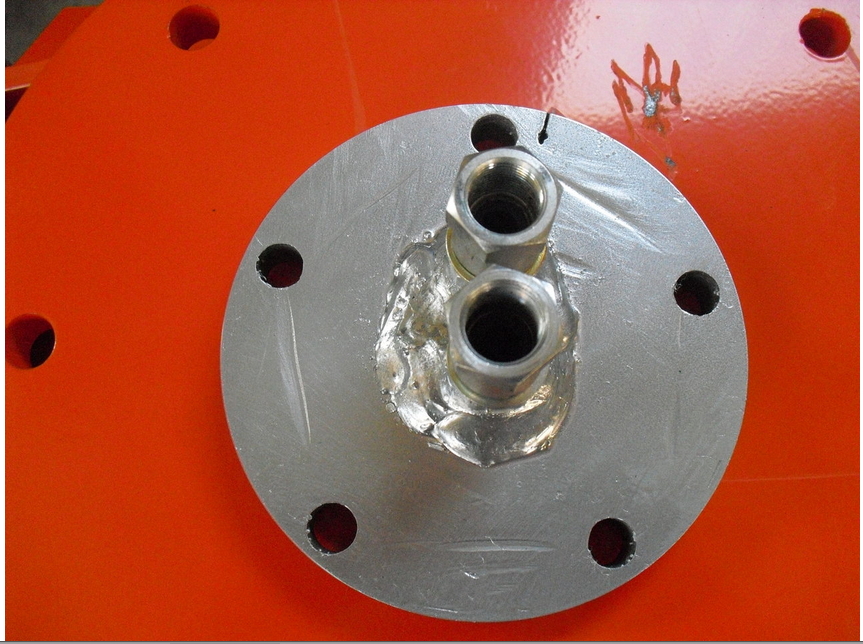

OPTIONAL: hydraulic link    -photo-1

                                                 photo 2

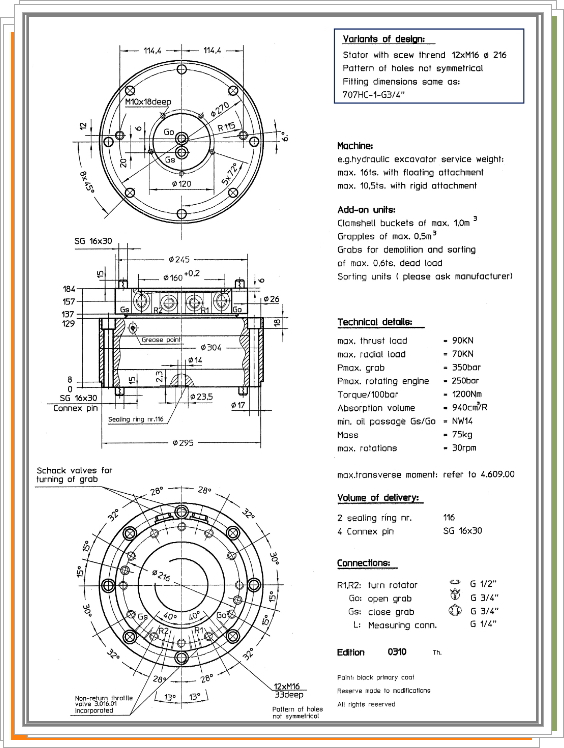

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod-609/4 hydraulic link -9 Ton

rotori per pinze da legna Model Static load

rigid mounting

pendulum mounting

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
609/4  hydraulic link  9 Ton 10.5 ton 16 ton 75 Kg 350 MAX BAR 250 MAX BAR scarica la scheda tecnica

OPTIONAL: hydraulic link    -photo-1

                                                 photo 2

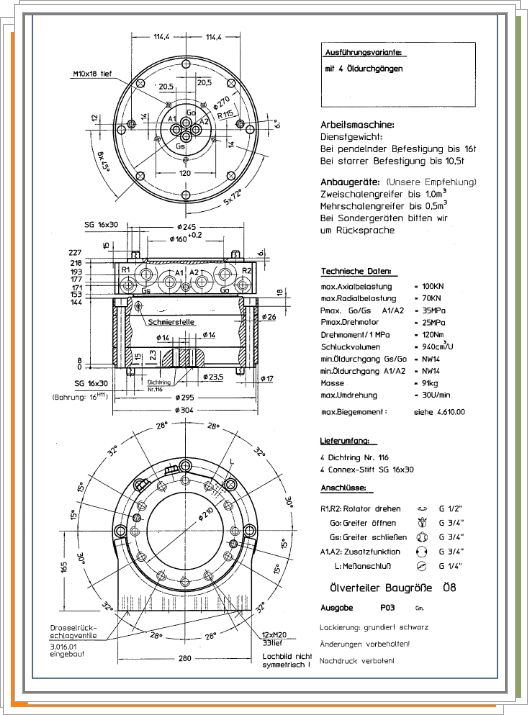

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod-610/4 hydraulic link -10 Ton

rotori per pinze da legna Model Static load

rigid mountin

pendulum mounting

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
610/4  hydraulic link  10 Ton 10.5 ton 16 ton 91 Kg 350 MAX BAR 250 MAX BAR scarica la scheda tecnica

OPTIONAL: hydraulic link    -photo-1

                                                 photo 2

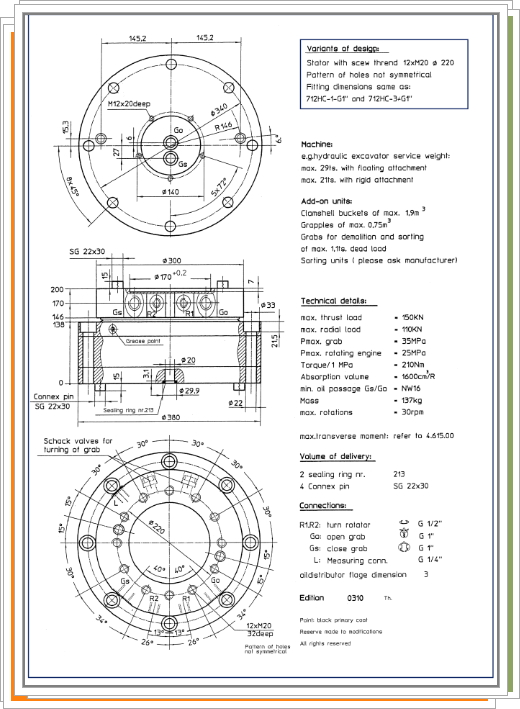

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod-615/4 hydraulic link -15 Ton

rotori per pinze da legna Model static load

rigid mounting

pendulum mounting

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
615/4  hydraulic link  15 ton 21 ton 29 ton 137 Kg 350 MAX BAR 250 MAX BAR scarica la scheda tecnica

OPTIONAL: hydraulic link    -photo-1

                                                 photo 2

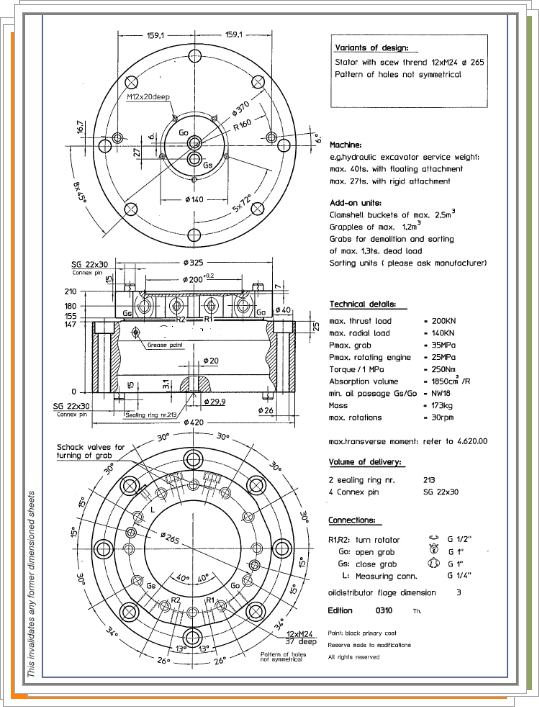

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod-620/4 hydraulic link -20 Ton

rotori per pinze da legna Model Static load

rigid mounting

pendulum mounting

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
620/4  hydraulic link  20 Ton 27 ton 40 ton 173 Kg 350 MAX BAR 250 MAX BAR scarica la scheda tecnica

OPTIONAL: hydraulic link    -photo-1

                                                 photo 2

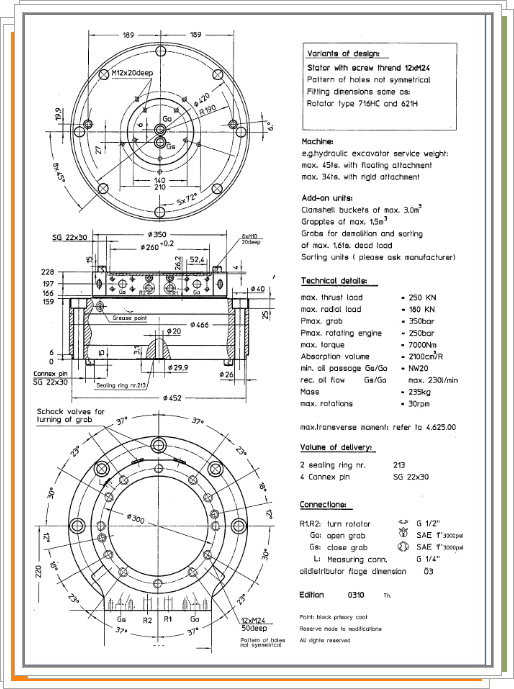

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod-625/4 hydraulic link -25 Ton

rotori per pinze da legna Model Static load

rigid mounting

pendulum mountign

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
625/4  hydraulic link  25 Ton 34 ton 45 ton 235 Kg 350 MAX BAR 250 MAX BAR scarica la scheda tecnica

OPTIONAL: hydraulic link    -photo-1

                                                 photo 2

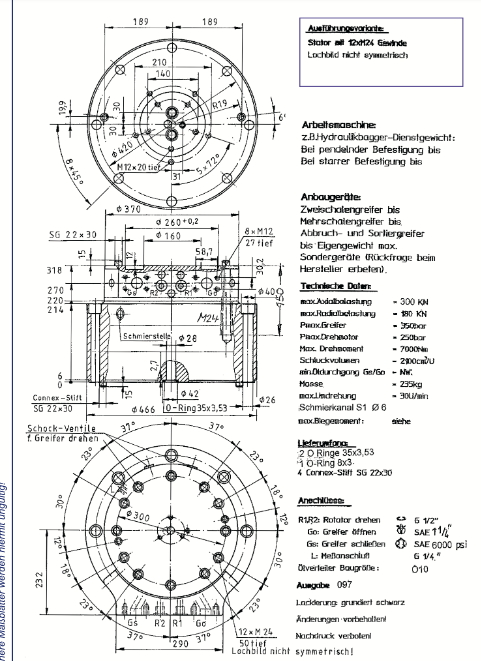

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod-630/4 hydraulic link -30 Ton

rotori per pinze da legna Model Static load

rigid mounting

pendulum mounting

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
630/4  hydraulic link  30 Ton 34 ton 45 ton 235 Kg 350 MAX BAR 250 MAX BAR scarica la scheda tecnica

OPTIONAL: hydraulic link    -photo-1

                                                 photo 2

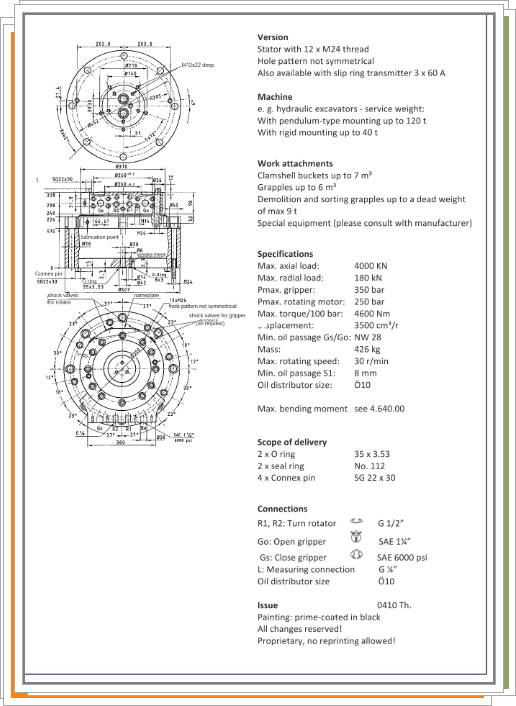

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod-640/4 hydraulic link -40 Ton

rotori per pinze da legna Model Static load

rigid mounting

pendulum mountign

Weight Pressione attacchi idraulici pinza
Pressure Schede tecniche
640/4  hydraulic link  40 Ton 40 ton 120 ton 426 Kg 350 MAX BAR 250 MAX BAR scarica la scheda tecnica

OPTIONAL: hydraulic link    -photo-1

                                                 photo 2

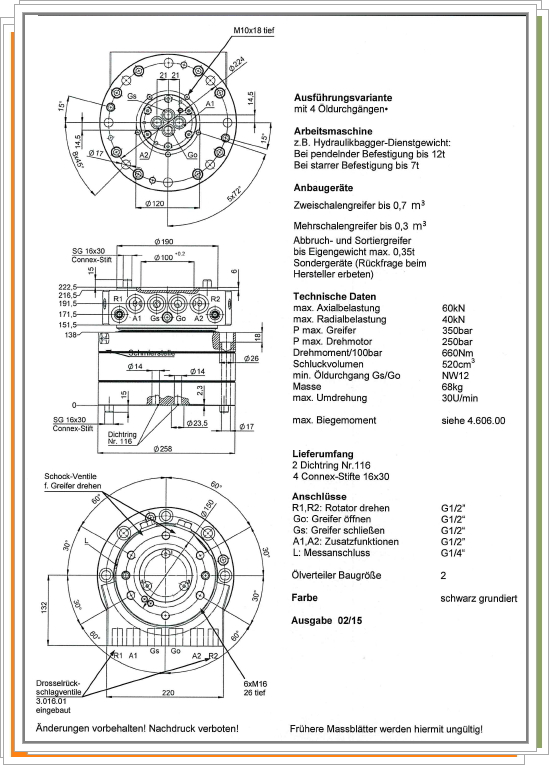

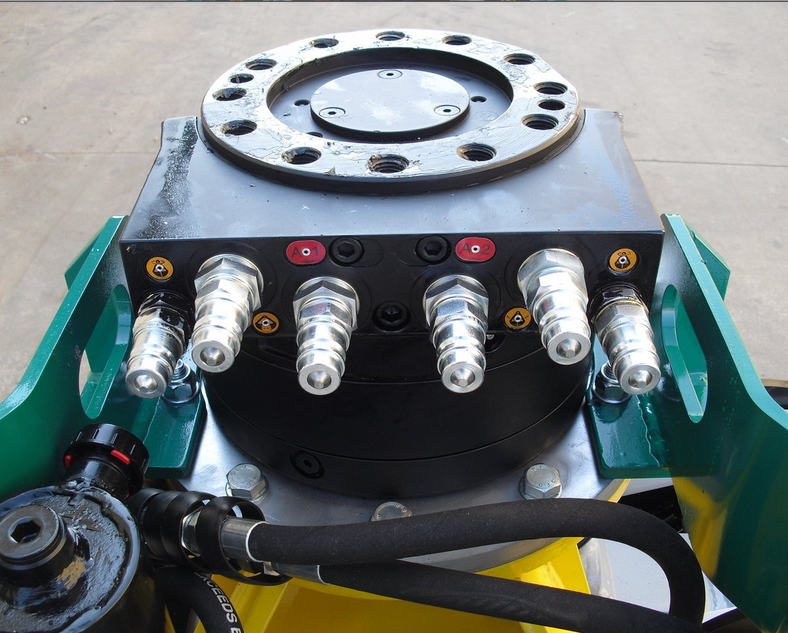

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod-606/6 hydraulic link -6 Ton

rotori per pinze da legna Model Static load Weight

rigid mounting

pendulum mounting

scarica scheda tecnica
606/6   hydraulic link
6 Ton kg 68 7 ton 12 ton

OPTIONAL: hydraulic link    -photo-1

                                                 photo 2

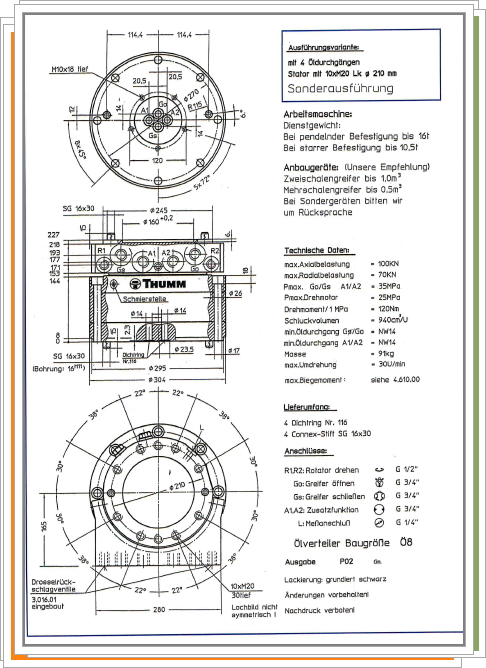

STEEL HYDRAULIC ROTATORS FOR HORIZONTAL AND VERTICAL-mod-610/6 hydraulic link -10 Ton

rotori per pinze da legna Model Static load Weight

rigid mounting

pendulum mounting

scarica scheda tecnica
610/6   hydraulic link
10 Ton kg 91 10.5 ton 16 ton

OPTIONAL: hydraulic link    -photo-1

                                                 photo 2
